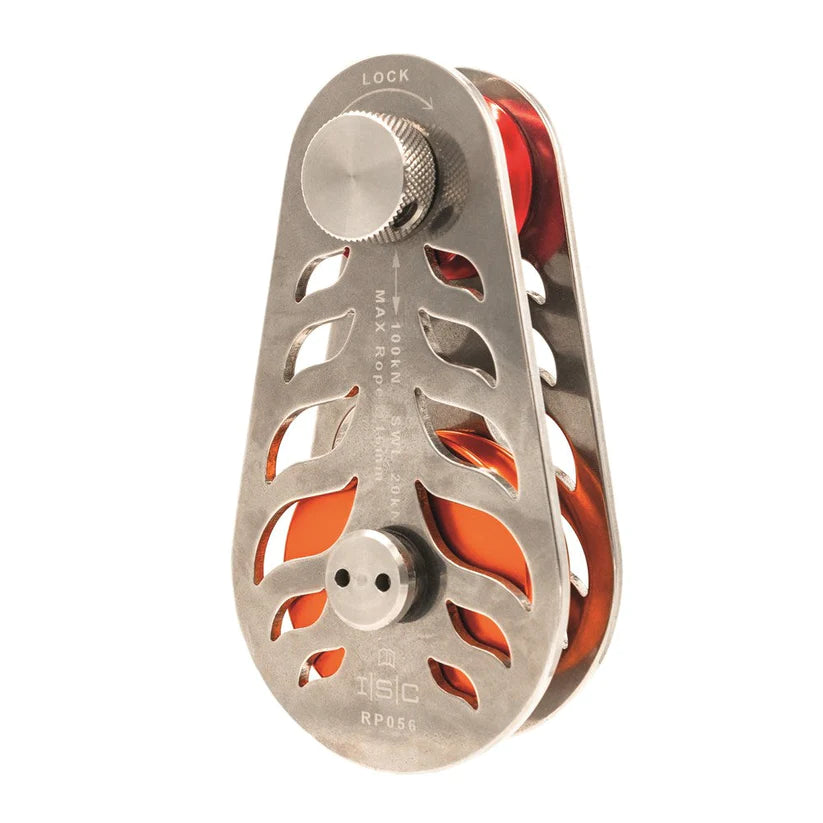

ISC Small Screwlock Pulley for up to 16mm Rope 100kN Stainless Steel with Orange Wheel//J7

ISC Small Screwlock Pulley for up to 16mm Rope 100kN Stainless Steel with Orange Wheel//J7

SKU = IS-RP056A1

ISC Rigging Blocks have colour-coded Side plates and Pulley Wheels, helping the user to easily identify the correct Block for the task. We have introduced a new fixed bollard dimension, which allows the user to fall in-line with rigging standard practice, whereby the Anchor/Topping Strop should be twice the Strength of the Working Line.

Technical Information

Rope diameter range (mm)  Max 16mm (5/8") Working Line Max 25mm (1") Topping Strop
(WLL) Working Load Limit (kg)  2000
(WLL) Working Load Limit (lbs)  4400
Pulley wheel colour  Orange
Anchor wheel colour  Red
Wheel material  Aluminium
Finish  Anodised
Body finish  Polished
Colour  Natural
Weight (grams)  1638

Approved Standards
CE Approved

Notes
Individually Serial Numbered
