Dinasaw Resin Grinding Wheels
Dinasaw Resin Grinding Wheels
Couldn't load pickup availability
- Shipping Rate on all orders $18.95 🚚
A60L8B-1A resin wheels for smooth, affordable sharpening. Must be profiled with a grinding stick for accurate tooth shape.
Description
SKU = G1253

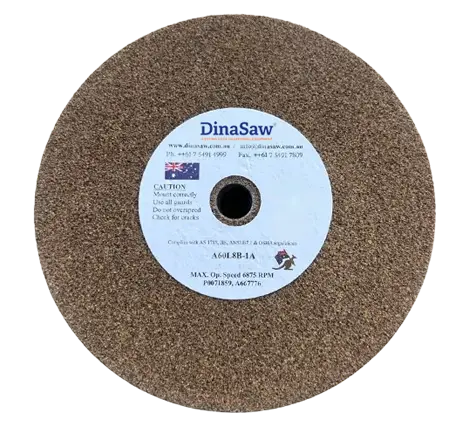

Dinasaw Resin Grinding Wheels
For reliable sharpening at a cost-effective price, choose the Dinasaw Resin Bonded Grinding Wheels. Manufactured from A60L8B-1A resin-bonded abrasive, these wheels deliver smooth, consistent grinding performance across a wide range of chainsaw and bandsaw teeth.
Resin wheels are designed to grind cleanly without excessive heat, protecting tooth hardness while providing a sharp cutting edge. To achieve the correct tooth profile, the wheels must be dressed with a grinding stick before use. This ensures the wheel matches your chain or bandsaw profile for accurate, repeatable sharpening.
With proven durability and compatibility, Dinasaw Resin Wheels are a trusted option for workshops and mills looking for a balance of value and performance.
For a Longer lasting grinding wheel we recommend our ABN and Diamond Wheels
Available Sizes
| Part Number | Size Metric | Size Inches |
| G1253 ABN | 125 x 3 x 11.1 | 4-7/8” x 1/8” x 7/16″ |
| G1254 ABN | 125 x 4 x 11.1 | 4-7/8” x 5/32” x 7/16″ |
| G1255 ABN | 125 x 5 x 11.1 | 4-7/8” x 3/16” x 7/16″ |
| G1258 ABN | 125 x 8 x 11.1 | 4-7/8” x 5/16” x 7/16″ |
Wheel Sizes to chain sizes (Thickness)
| Grinding Wheel Size | Chain Size | Notes |
| 3mm / 1/8″ | 1/4″, 3/8″, LP | 1/4″ chain also called pico or piccolo. LP – Low Profile |
| 4mm / 5/32″ | 3/8″, .404 | This is best for customers sharpening both sizes of chain |
| 5mm / 3/16″ | 0.404 | This is best suited to 0.404 chain |
| 8mm / 5/16″ | 3/4″ | This is best suited to 3/4″ chain. Also called Harvester chain |
Wheel Sizes to Machines
| Our wheels fit these machines | |
| 125mm / 4/78″ | DinaSaw Machines |
Key Features & Benefits
- Manufactured from A60L8B-1A abrasive – durable and reliable resin bond
- Cost-effective performance – affordable option without sacrificing quality
- Smooth grinding action – delivers clean, accurate results
- Protects teeth – minimises overheating to preserve hardness
- Profiling required – dress with a grinding stick to achieve correct tooth profile
- Consistent accuracy – keeps blades cutting straight and true
- Compatible – suits Dinasaw sharpeners and most standard grinding machines
Technical Specifications
- Type: Resin bonded grinding wheel
- Material: A60L8B-1A resin-bonded abrasive
- Preparation: Must be profiled using a grinding stick before use
- Sizes Available: Multiple sizes for chain and bandsaw sharpening
- Application: Suitable for everyday sharpening in workshops and mills
- Origin: Built to Dinasaw’s professional standards
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 14.5 × 14.5 × 0.5 cm |
