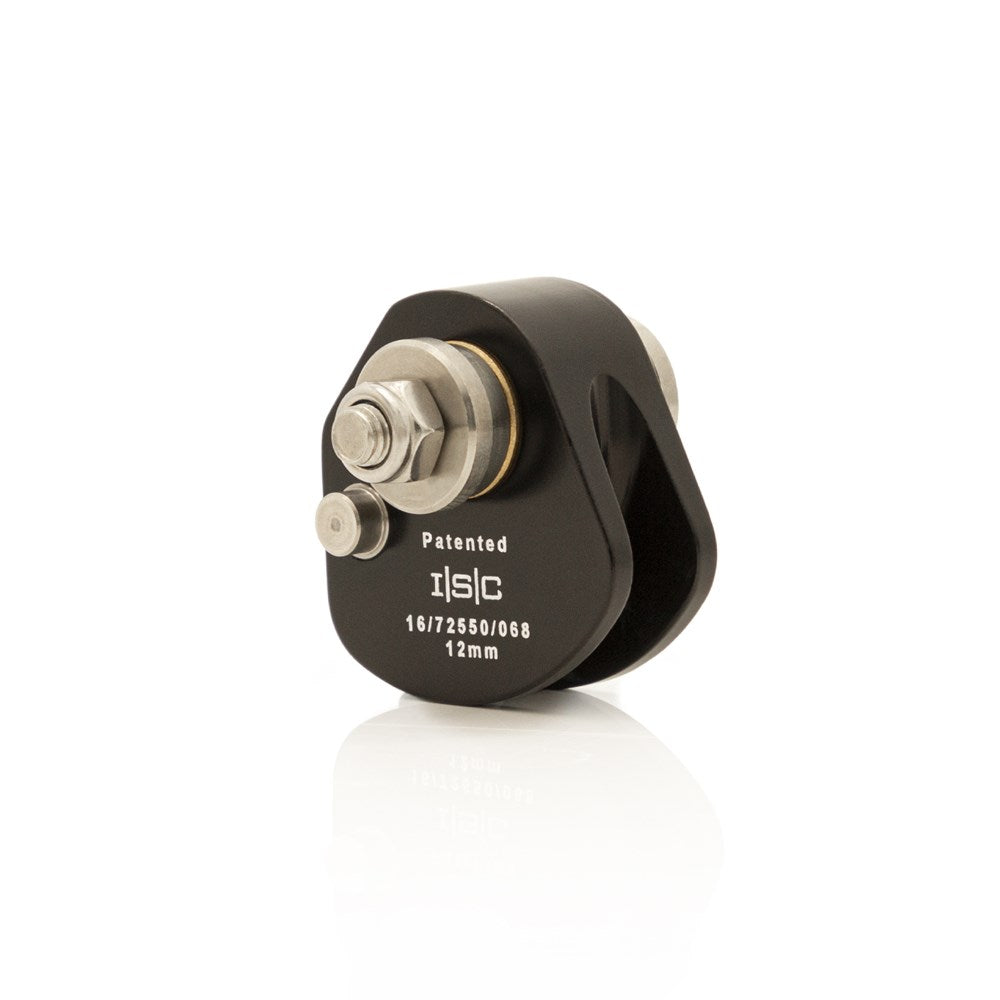

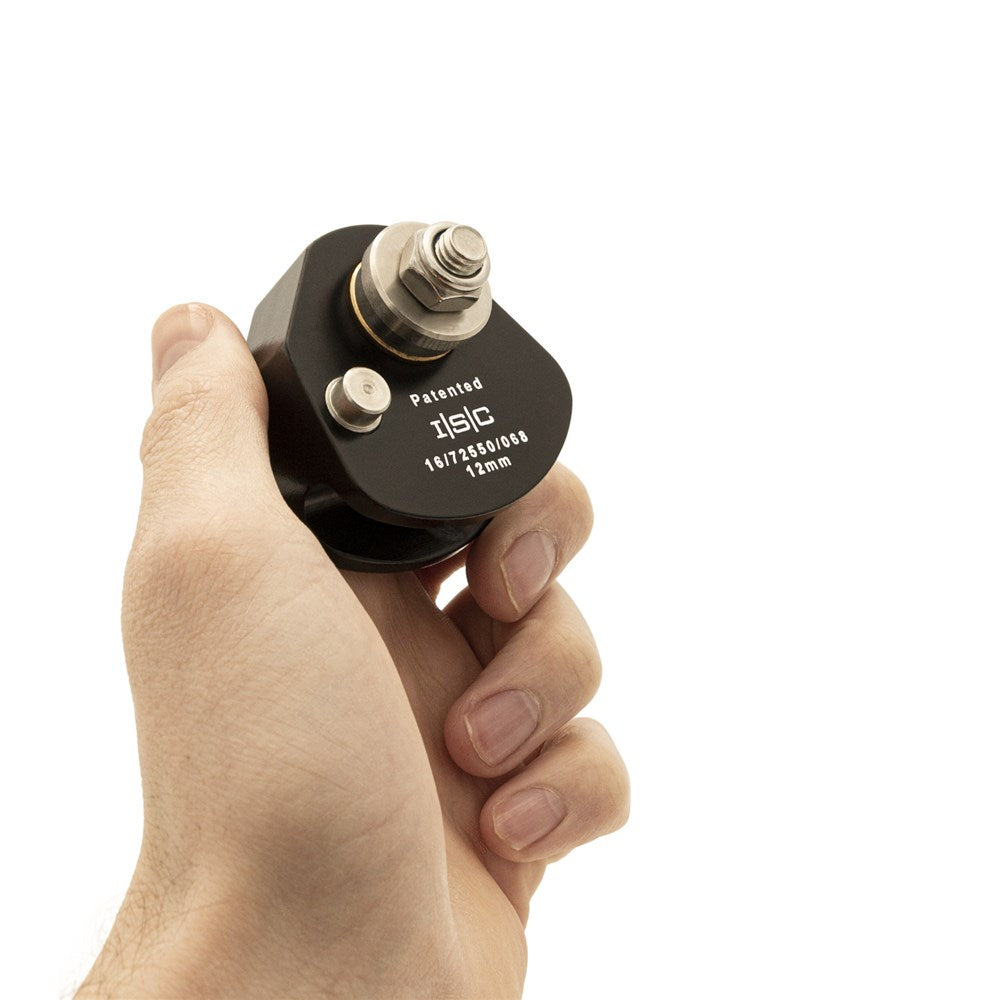

ISC ZipSpeed Anti Rollback Cam Kit (ARC075 / ARC076)
The ISC ARC Anti-Rollback Cam is a patented safety device designed to be retrofitted to ISC ZipSpeed Tandem trolleys. Available for both the ZipSpeed-S (RP075) and ZipSpeed-L (RP076) models, the ARC device significantly improves rescue efficiency by preventing the trolley from rolling backwards on the zipline.
During normal operation, the ARC cam trails freely, allowing the trolley to travel forward without restriction. If the trolley begins to roll backwards, the cam automatically engages, bringing the trolley to an immediate stop. By preventing reverse travel, the ARC device captures the trolley's progress on the line, reducing rescue distance and significantly decreasing rescue time should a rider fail to reach the end of the zipline.
Each ARC device is trolley-specific and cable diameter-specific, ensuring reliable operation when matched with the correct ZipSpeed trolley and steel cable size.
Technical Information
| Specification | ARC075 | ARC076 |
|---|---|---|
| Compatible Trolley | ZipSpeed-S (RP075) | ZipSpeed-L (RP076) |
| Compatible Steel Cable Diameter | 12 mm, 13 mm, 16 mm or 20 mm | 12 mm, 13 mm, 16 mm, 19 mm or 20 mm |
| Serial Numbering | Standard | Standard |
Key Features
- Patented anti-rollback safety system.
- Prevents the trolley from rolling backwards if it fails to reach the end of the zipline.
- Automatically engages during reverse movement while allowing unrestricted forward travel.
- Helps reduce rescue distance and rescue time.
- Simple retrofit installation on compatible ZipSpeed Tandem trolleys.
- Trolley-specific and cable diameter-specific design for optimum performance.
- Supplied with individual serial numbering as standard.
Compatibility
- ARC075 is designed exclusively for the ISC ZipSpeed-S (RP075) trolley.
- ARC076 is designed exclusively for the ISC ZipSpeed-L (RP076) trolley.
Approved Standards
- Not Applicable
Notes
- Patented design.
- ARC devices are designed for use on industry-standard steel cables only.
- Not recommended for use with synthetic cables (e.g. Deltex or similar).
- Ensure the ARC device matches both the trolley model and the cable diameter for correct operation.
