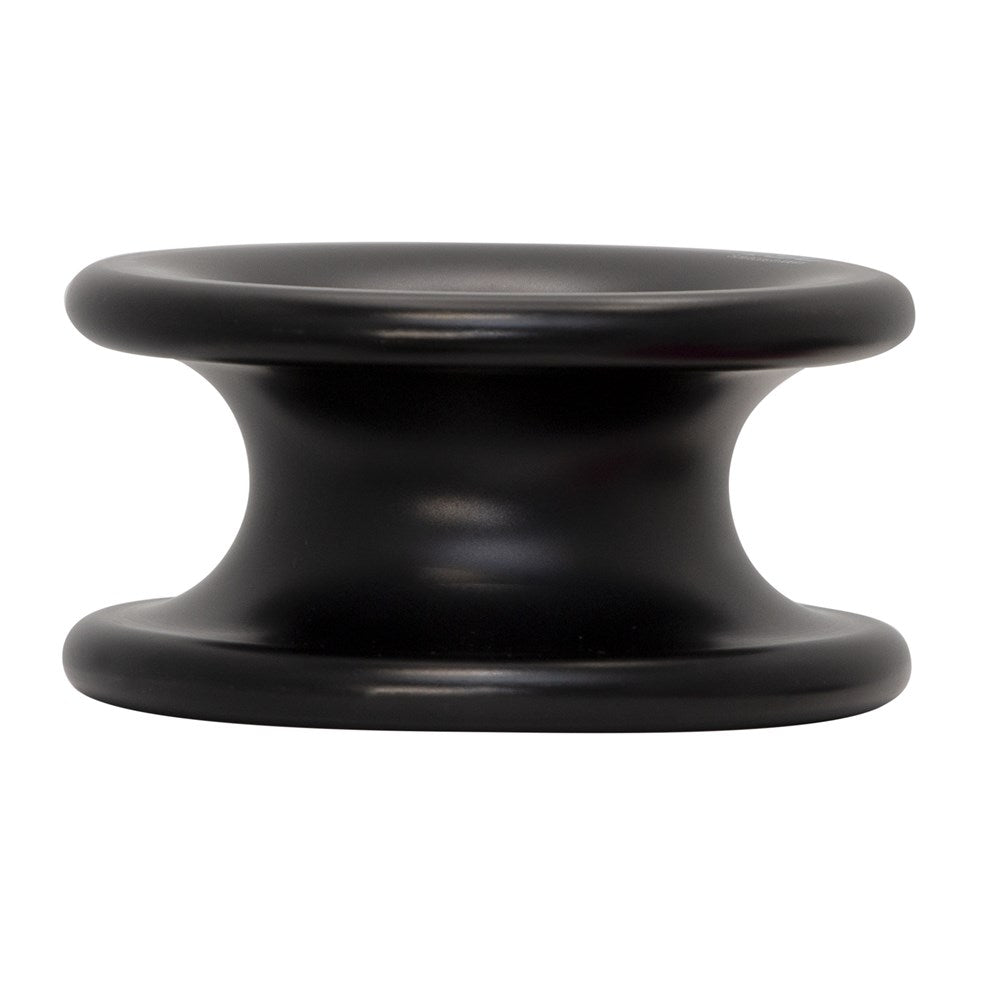

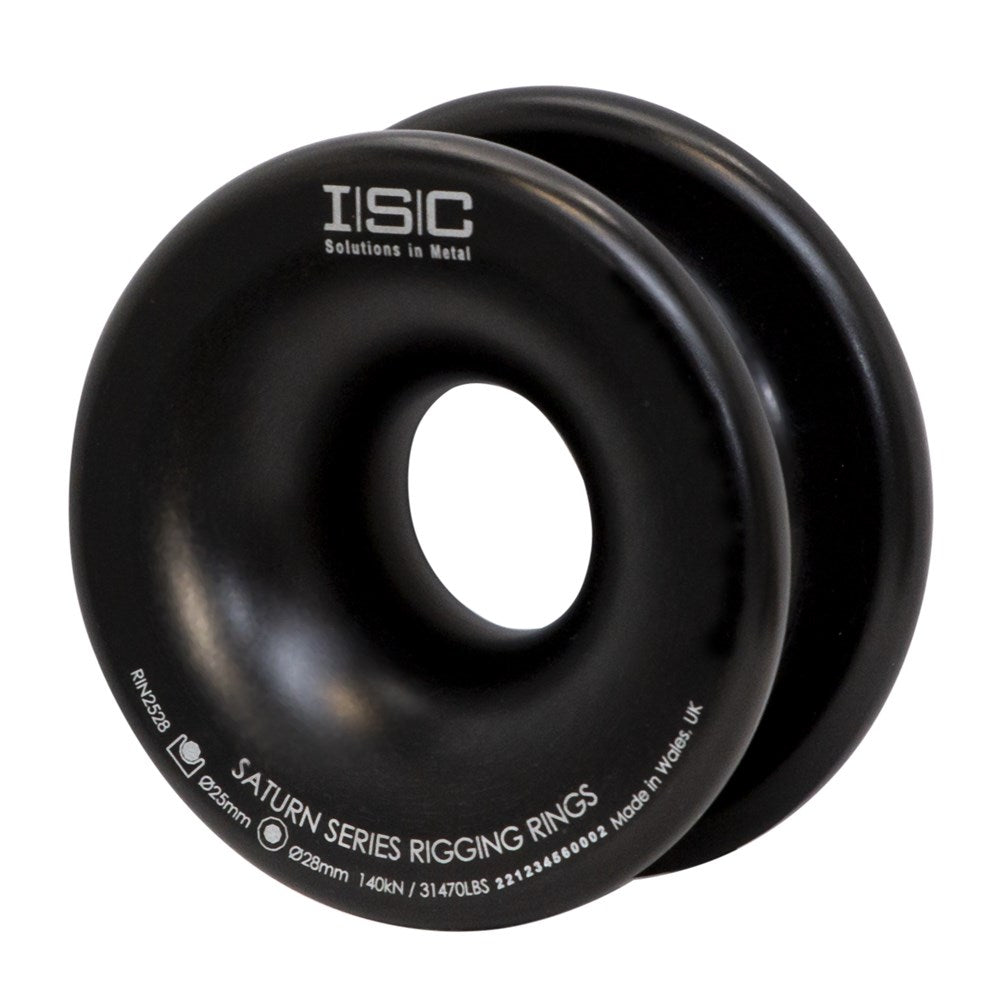

ISC SATURN SERIES Rigging Ring- Small, WLL 28kN (6294lbf). CE 2006/43/EC

SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces.  The rings have a Hard-Anodised coating for durability and a polished, low-friction finish.

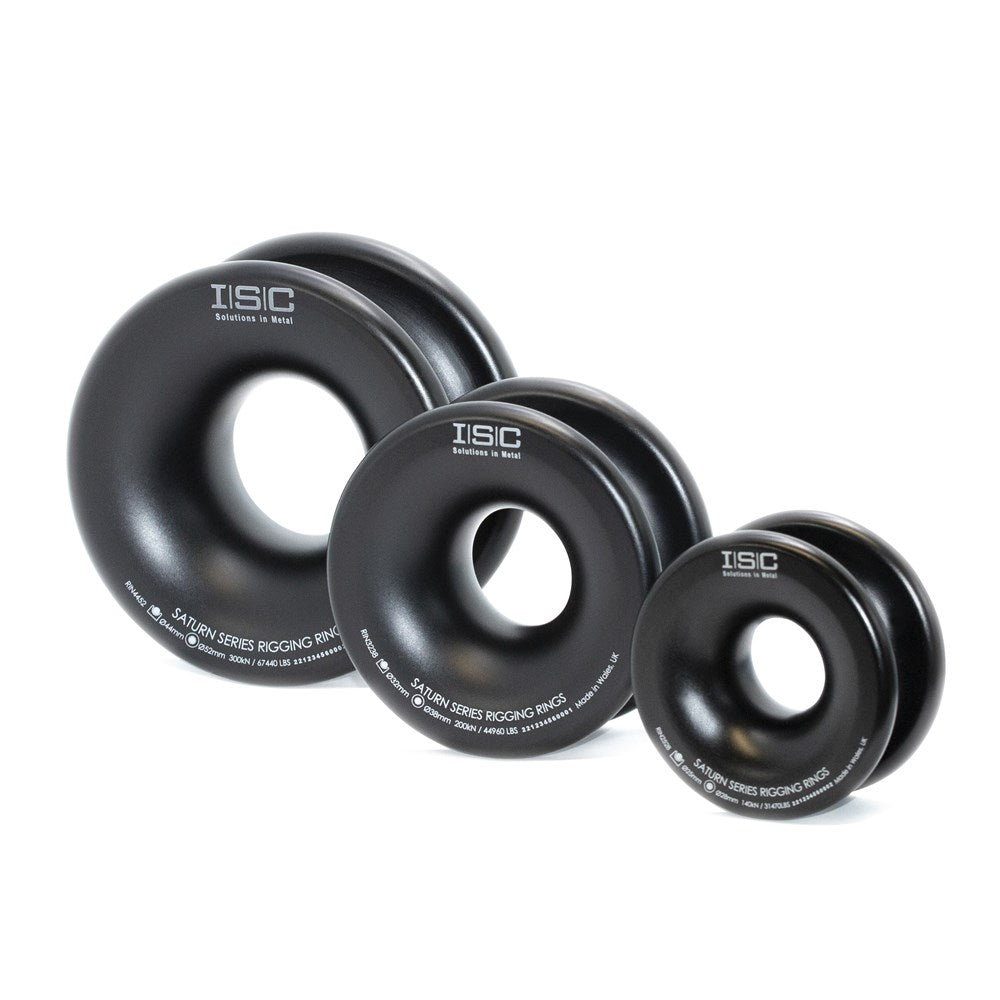

ISC SATURN Rings are available in three sizes and can be used in a variety of rigging configurations.  SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.

Overall Diameter  88mm (3.5")

Inner Diameter  28mm (1.1")

Groove Radius (rope path)  25mm (0.98")

WLL  28kN (6294lbf)

Technical Information

Serial numberingAs standard
FinishHard anodised
Weight (grams)302
Weight (ounces)10.6

Approved Standards

CE 2006/42/EC
UKCA
