ISC RAD Work Positioning Lanyard – No Connectors

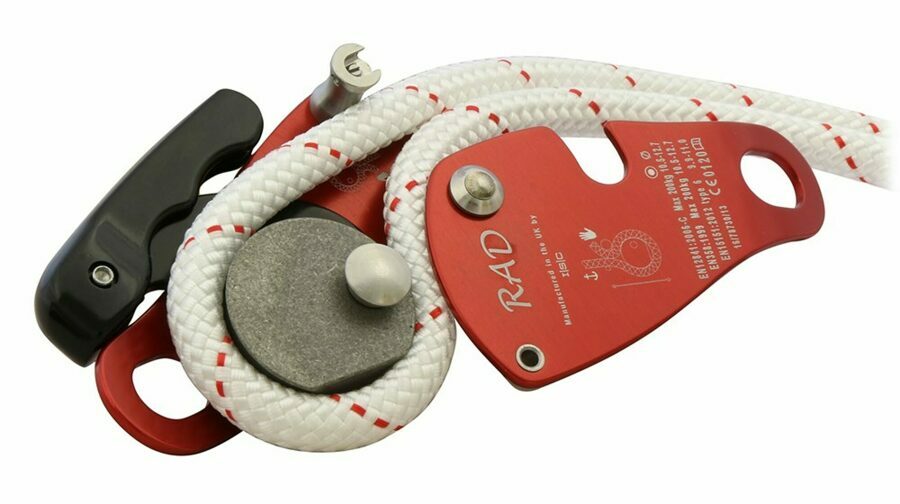

Details: The RAD is now supplied with a new top bollard, which allows the user the choice of fixing the side plate in place (in line with Lanyard related standards), or removing the captivation screw, allowing the front plate to be swung open. The swinging side plate is particularly useful when the device is in use in descent/ascent function

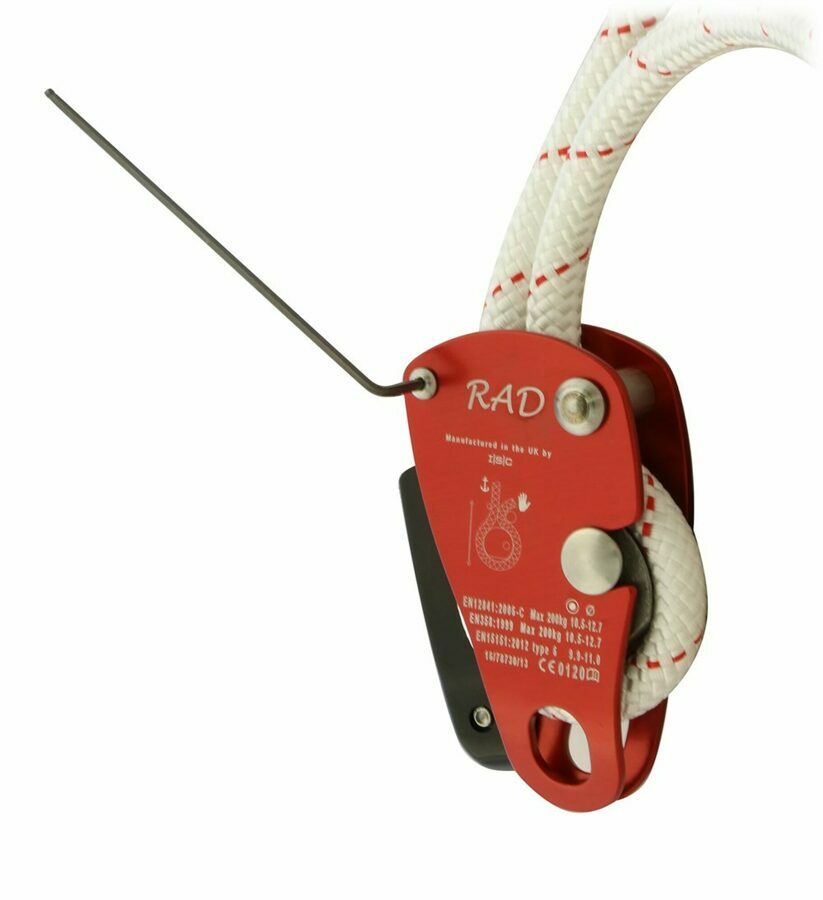

To switch from fixed to swing plate functions, the user simply needs to remove a screw from the bollard, using a 2.5mm Allen Key. A small, flat-head screwdriver can then be used to screw a small, headless Grub Screw in to the hole in the bollard. The small Grub Screw keeps the thread free from debris, allowing the device to be converted back to fixed plate, as required.

Rope diameter range (mm)10.5-12.7 (WLL) Working Load Limit (kg)200 (WLL) Working Load Limit (lbs)440 Serial numberingAs standard

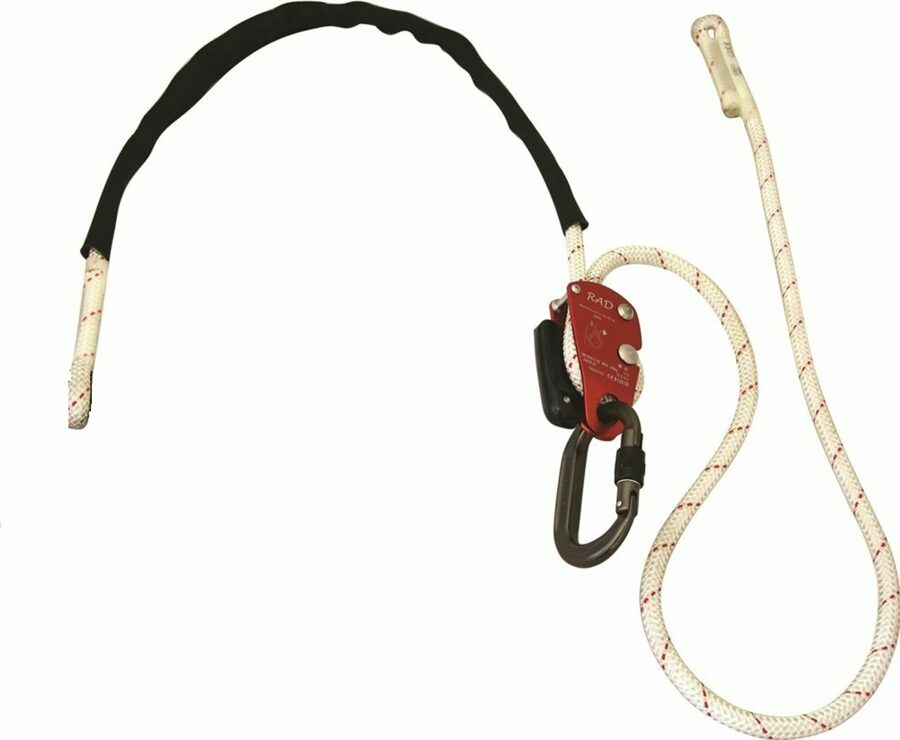

Description: The RAD ‘Rope Adjustment Device’ is a multi-functional device which can be used as part of a work-positioning lanyard (for 10.5 - 12.7mm rope). The RAD can also be used for ascent, descent, work-positioning/restraint, belay and progress capture. The ‘squeeze style’ device makes smooth adjustment easy, while the spring-loaded flip down handle allows easy use, especially in descent mode.
