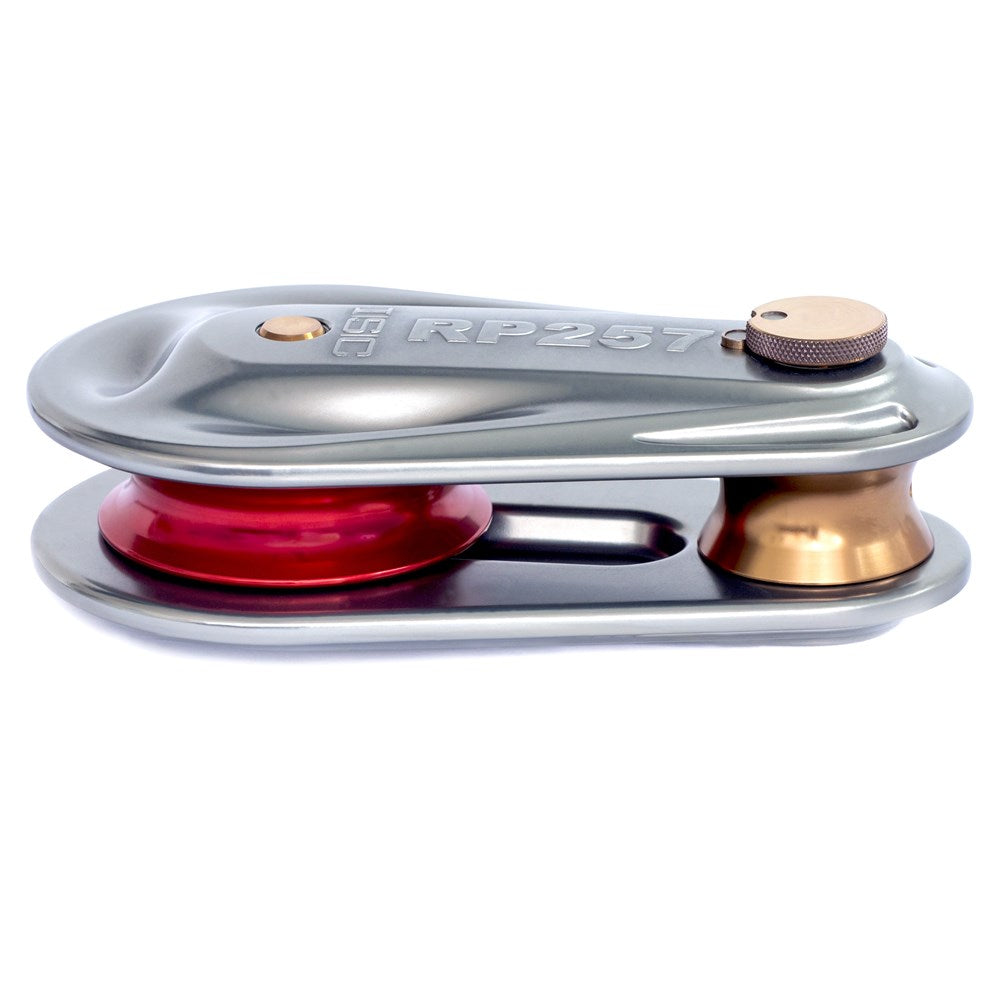

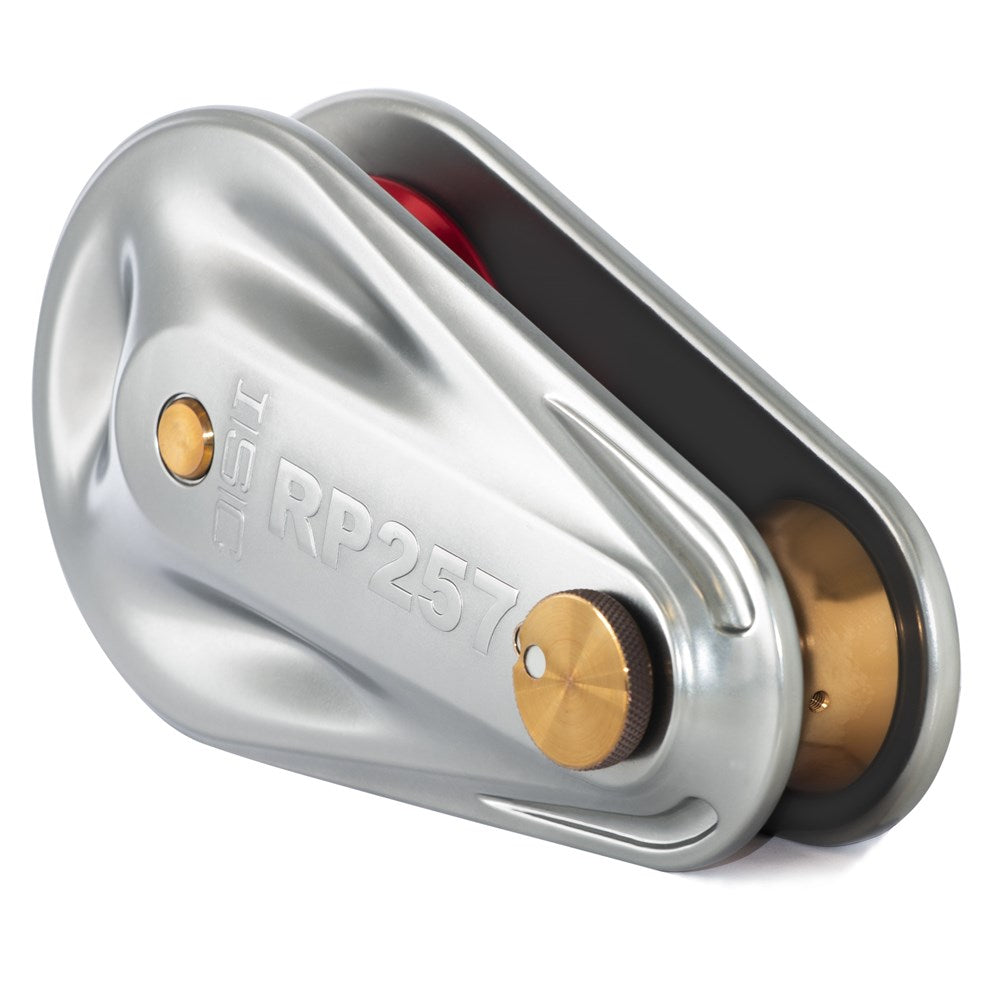

ISC Large Rigging Pulley for up to 25mm Rope - 380kN - Grey with Red Wheel
ISC Large Rigging Pulley for up to 25mm Rope - 380kN - Grey with Red Wheel
Couldn't load pickup availability
120-Day Returns
Buy with total confidence. If it's not right, you've got 120 days to send it back and we'll make it right.
- Shipping Rate on all orders $18.95 🚚 (EXCL. BULKY ORDERS)
Product details +
The RP257 is the largest pulley in our 200-series. Our new Patent Pending “SafeLock” system builds upon the reliability and ease of use that our customers expect from ISC pulleys. The new SafeLock locking mechanism achieves an extremely low profile design while maintaining the quick action of a SpringLock.
Technical Information
Compatible with rope diameter (mm)26mm (1")
(MBS) Minimum Breaking Strength (kN)380kN
(MBS) Minimum Breaking Strength (lbf)85427lbf
Serial numberingAs standard
FinishAnodised
Weight (grams)5000
Weight (ounces)176
Approved Standards
CE Machinery Directive 2006/42/EC
UKCA Supply of Machinery (Safety) Regulations 2008
Notes
WLL 76kN (17085lbf)
