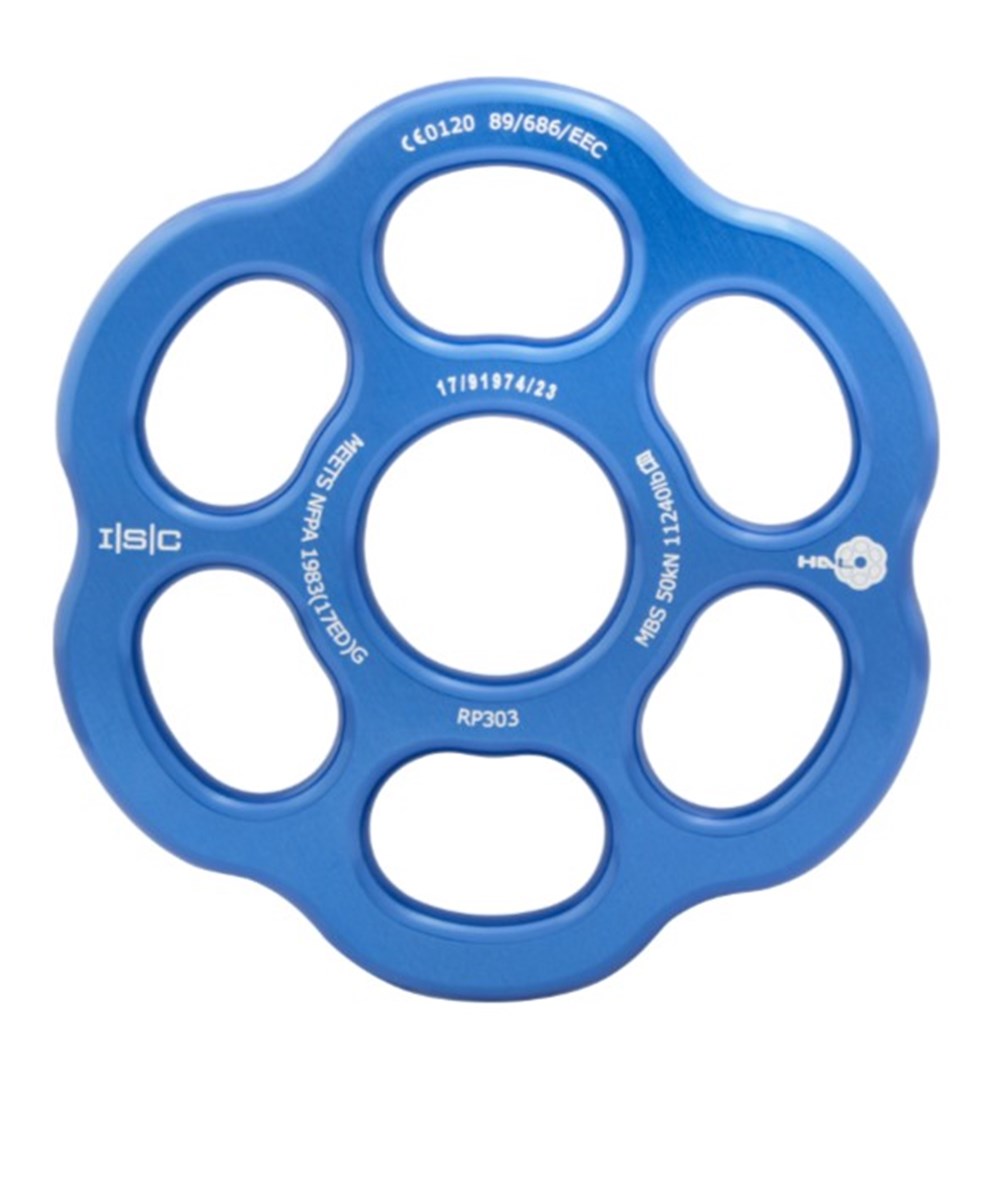

ISC HALO Rigging Plate Medium 50kN Blue 5

HALO Rigging Plates form part of a compatible system and were developed to match the ratings on our Karabiners and Prussik pulleys, at 40kN/ (8992lbf), 50kN (11,240lbf) and 70kN (15,736lbf).

Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple Karabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.

Technical Information

• (MBS) Minimum Breaking Strength (kN) - 50
• (MBS) Minimum Breaking Strength (lbf) - 11240
• Serial numbering - As standard
• EZYiD - Available on request
• Finish - Anodised
• Width (mm) - 144
• Width (inches) - 5.625

Approved Standards

89/686/EEC

NFPA 1983 (17ED)G
