ISC Girder Grip – 40mm

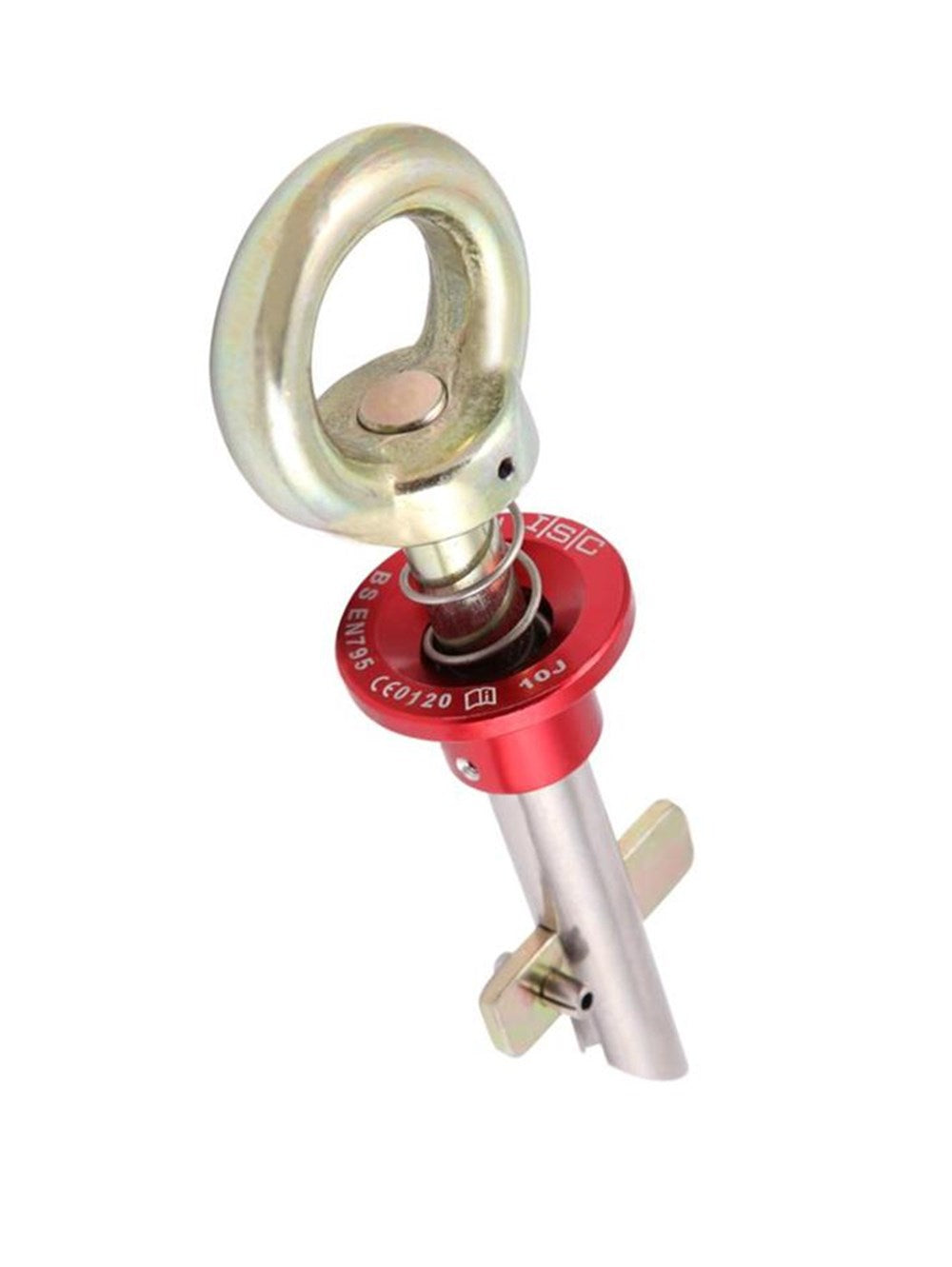

The GG101 is a  quick & easy portable anchorage solution which can be used in the vertical and horizontal plane (please see User Manual for more information). The GG101 is designed for use through Steel Girders.  This anchor is operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted into the anchor hole. Once the device is in position, the red collar can be released, causing the retention bar to engage, fixing the device in position.

Technical Information

Serial numberingAs standard
FinishAnodised
Body finishPolished
ColourRed
Weight (grams)554
Weight (ounces)19.5

Approved Standards

EN 795:2012

Notes

Attachment Eye ø 35mm (1.4")
Insertion Hole ø 20-28mm (0.78-1.1")
