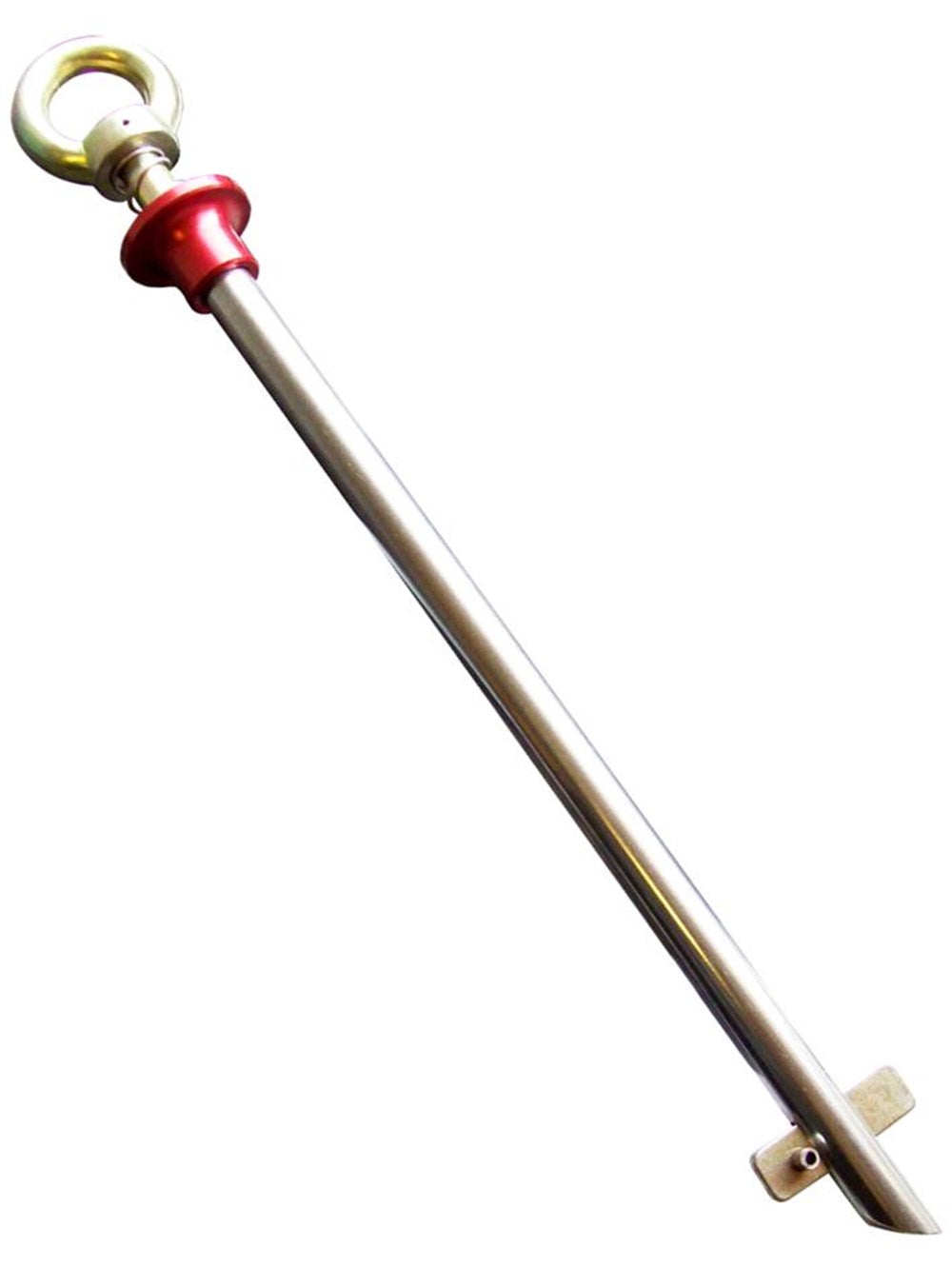

ISC Concrete Anchor – 330mm

The GG201 is a  quick & easy portable anchorage solution which can be used in the vertical and horizontal plane. The GG201 is designed for use through formed concrete structures.  This anchor is operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted into the anchor hole. Once the device is in position, the red collar can be released, causing the retention bar to engage, fixing the device in position.

Technical Information

(MBS) Minimum Breaking Strength (kN)12
(MBS) Minimum Breaking Strength (lbf)2697
Required beam thickness (mm)330
Required beam thickness (inches)13
Serial numberingAs standard
ColourRed
Weight (grams)1200 (2.6lb)

Approved Standards

EN795:2012

Notes

Attachment Eye ø 35mm (1.4")
Insertion Hole ø 20-28mm (0.78-1.1")
