ISC Concrete Anchor - 100mm

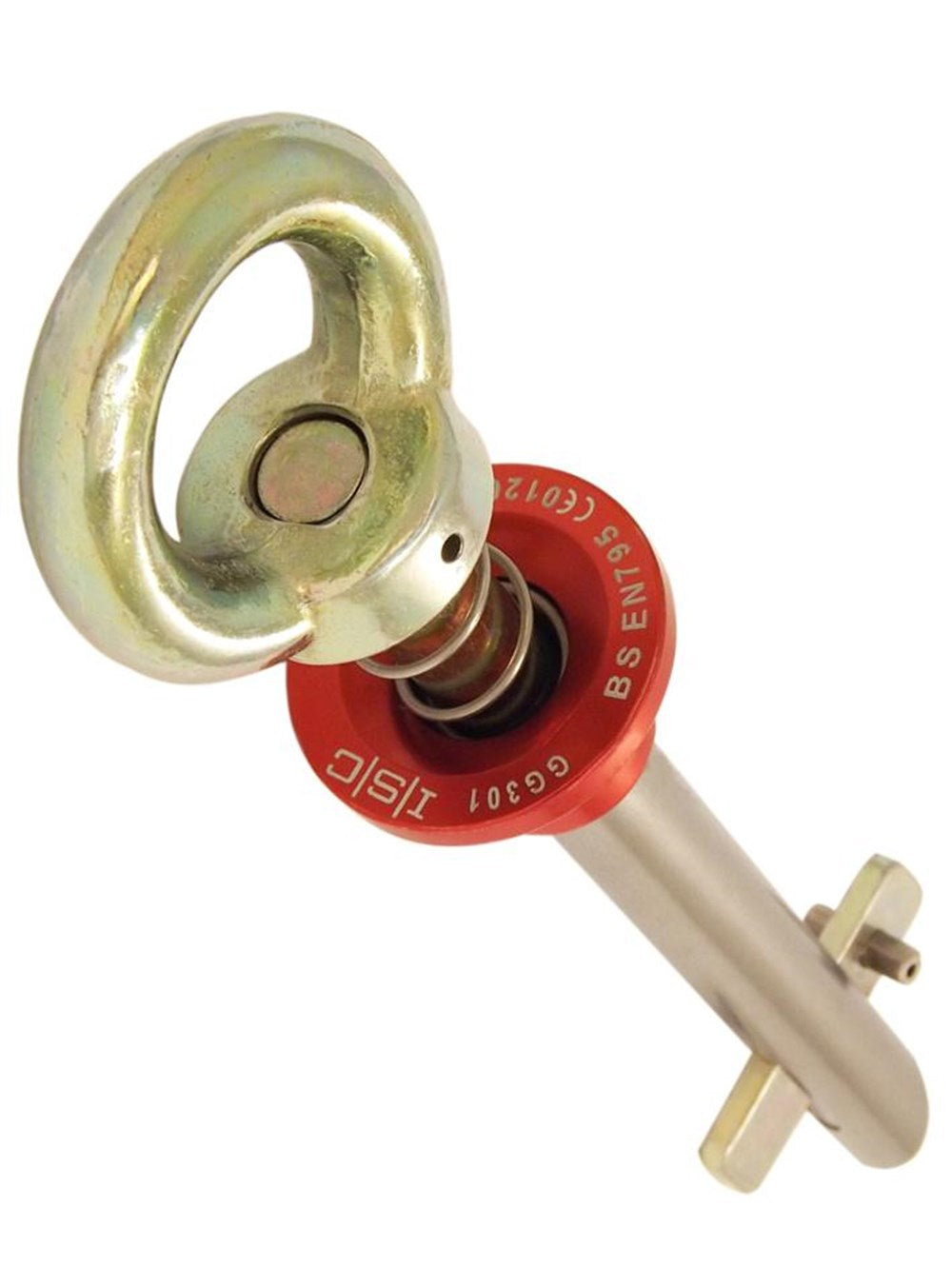

The GG301 is a  quick & easy portable anchorage solution which can be used in the vertical and horizontal plane. The GG301 is designed for use through hollow-core precast concrete slabs of up to 100mm (4") depth.  This anchor is operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted into the anchor hole. Once the device is in position, the red collar can be released, causing the

retention bar to engage, fixing the device in position.

Technical Information

(MBS) Minimum Breaking Strength (kN)12
(MBS) Minimum Breaking Strength (lbf)2697
Serial numberingAs standard
FinishAnodised
Body finishPolished
ColourRed
Weight (grams)695
Weight (ounces)24.5

Approved Standards

EN795:2012

Notes

Attachment Eye ø 35mm (1.4")
Insertion Hole ø 20-28mm (0.78-1.1")
