CHAMP 5 ALLOY BRUSHCUTTER TRIMMER HEAD AB1325

SKU = AB1325

The CHAMP 5 is a replacement head for straight shaft brushcutters. These machines are fitted with a gearbox at the end of the drive shaft and rotate anti-clockwise when cutting. The CHAMP 5 will adapt to ALL straight shaft brushcutters that accept a blade. The CHAMP 5 mounts on the same 25mm riser as the blade.

Highly engineered from marine grade aluminium The CHAMP 5 is designed for robust Australian conditions. There are no moving parts in the CHAMP 5 and special care has been taken with the engineering of the cutting cylinder to ensure there are no sharp edges bearing on the cutting line.

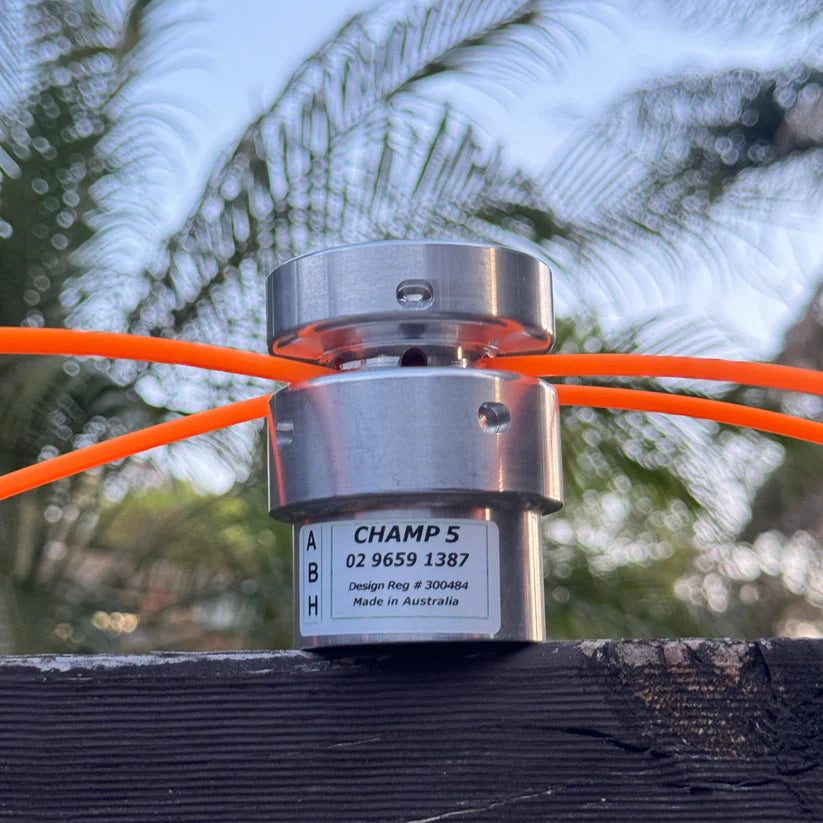

Using fixed length line the CHAMP 5 is usually loaded with three lines making six cutters. The large number of lines means that wear is spread evenly over more cutting line which in turn makes for extended non-stop cutting time. The CHAMP 5 commonly achieves up to two hours or more before line needs to be replaced.

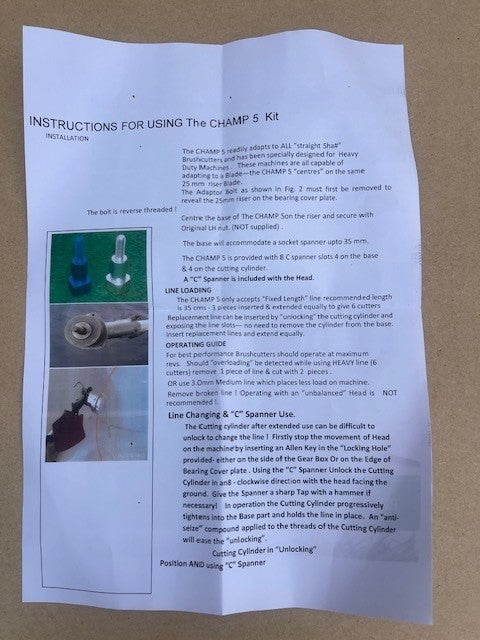

Line replacement and release is easily done without having to remove the head from the machine. The CHAMP 5 is provided with eight C spanner slots - a  C Spanner - is included with each Head sold.

USES: Professional / Commercial Heavy Duty Large Area use

The CHAMP 5 is the preferred replacement Head for Councils: Govt Agencies : National Parks RTA + Owners of Large Acreages Exceptional Heavy Duty performance Fits ALL Straight Shaft machines. The CHAMP (Range Variants) has been on the Market for 12 years


FEATURES
Amazing performance non-stop cutting for hours!!
Very Heavy Duty

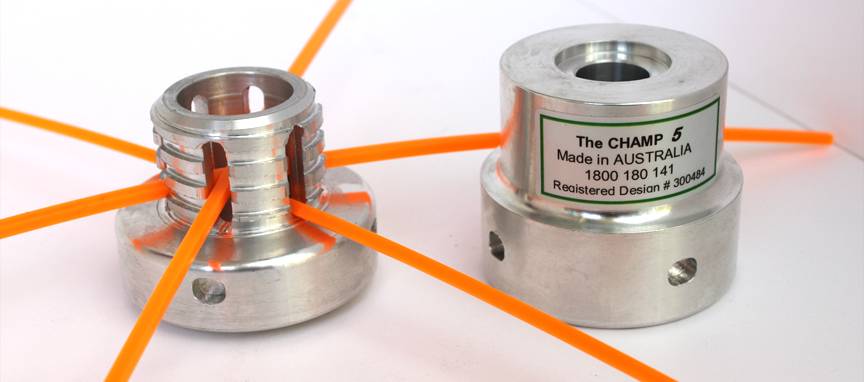

ALL METAL 2 piece construction NO moving parts
Cutting Cylinder has 6 line slots
Uses 1- 2- 3 Lines = 2- 4- 6 Cutters
Base is attached using Original LH Retaining Nut
Base accepts a 34mm Socket Spanner
On Machine line Loading & Reloading with our easy to use “Cutting Cylinder Line Loading System”
C Spanner provided for easy line changing
Wear part is a Spare part


SPECIFICATIONS
Weight : 363 grams
Material Marine Grade Aluminium
Base Diameter : Outside 60 mm : Inside 34 mm
Overall Height : 72 mm
Cutting Line : 3 x SuperCut Heavy 3.6mm = 6 cutters
Cutting Cylinder - 6 Line slots

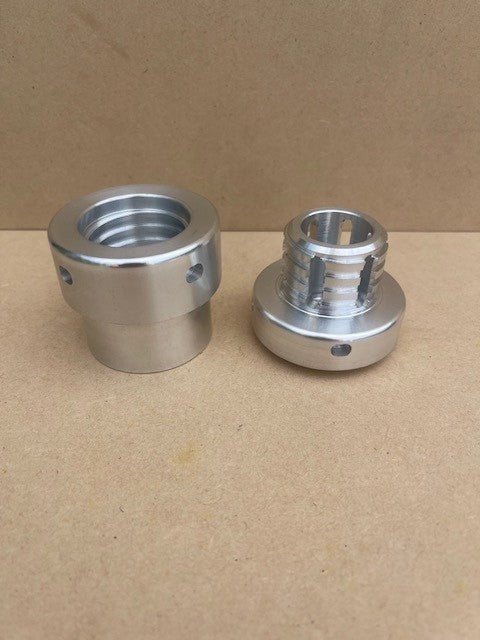

Components : Base & Cutting Cylinder (wear part)
Spare Parts : Cutting Cylinder & C Spanner
NEW “box / square” thread is “loose fit” to resist heat expansion after extended use
Equipped with 8 C Spanner slots

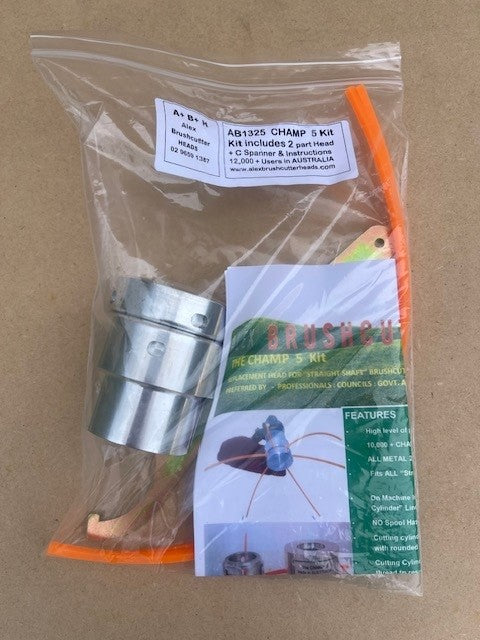

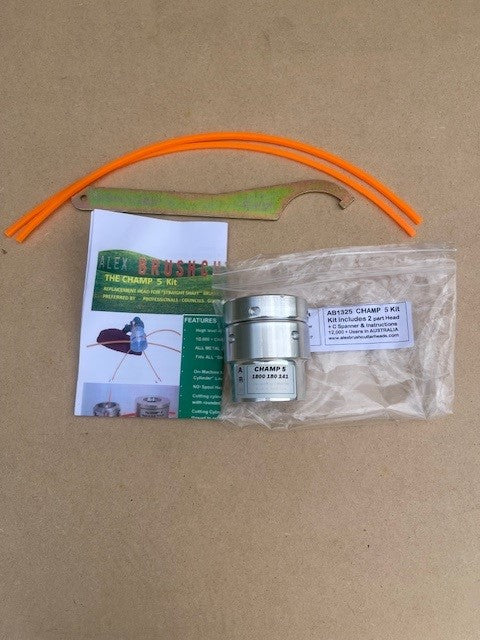

C spanner included
DESIGNED & MADE IN AUSTRALIA
