ABN Fine Grit Grinding Wheels
  • Shipping Rate on all orders $18.95 🚚 (EXCL. BULKY ORDERS)
SKU = G1253ABN FG
Product details +

Upgrade your sharpening with premium fine grit wheels — delivering sharper edges, smoother finishes, and cleaner cuts.

Description

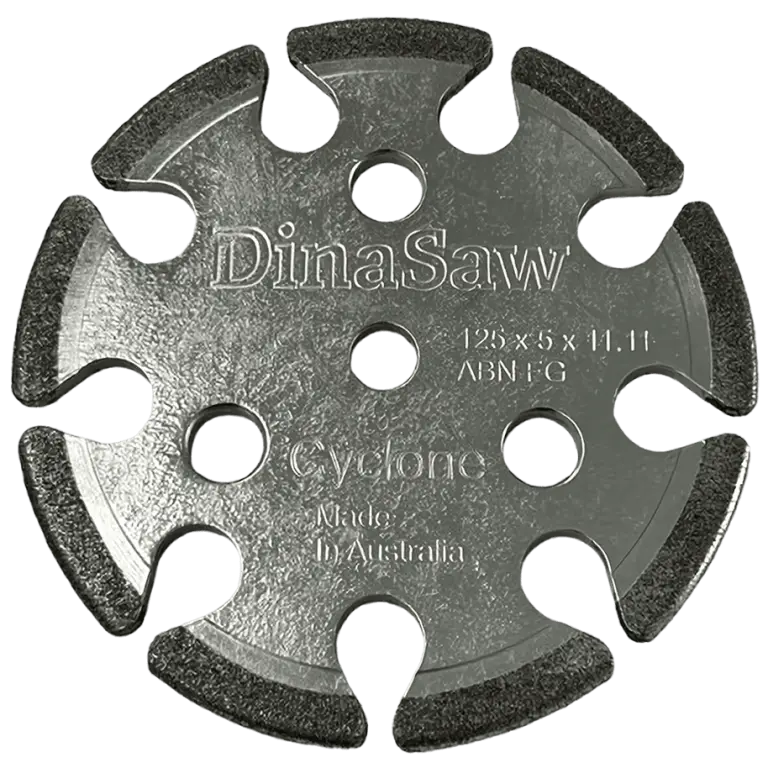

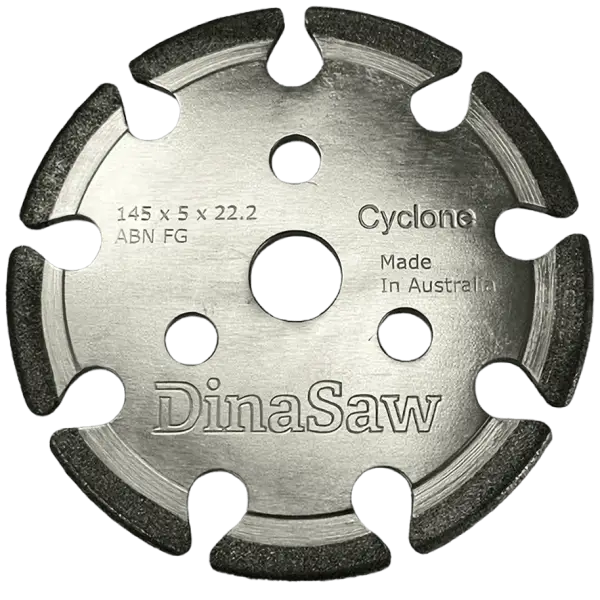

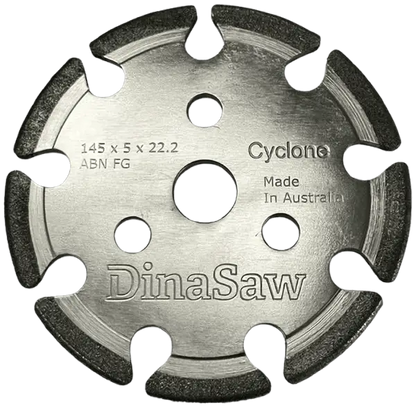

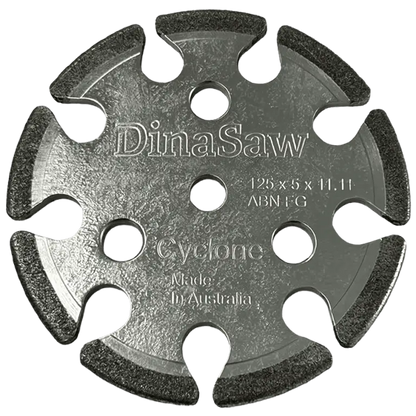

Dinasaw Fine Grit ABN Grinding Wheels

When precision and finish matter, choose the Dinasaw Fine Grit ABN Grinding Wheels. Engineered with a finer abrasive structure, these wheels deliver a premium surface finish and produce a sharper, cleaner edge on every tooth.

Perfect for sawmills and professionals who demand more than just a functional grind, Fine Grit ABN wheels reduce burrs and imperfections, giving blades smoother cutting performance and extended life. They’re the ideal choice for finishing passes or for applications where a superior edge quality makes all the difference.

Made to Dinasaw’s exacting standards, these wheels combine the value of ABN with enhanced precision — the smart upgrade for serious operators.

Available Sizes

Part Number Size Metric Size Inches
G1253 ABN FG 125 x 3 x 11.1 4-7/8” x 1/8” x 7/16″
G1254 ABN FG 125 x 4 x 11.1 4-7/8” x 5/32” x 7/16″
G1255 ABN FG 125 x 5 x 11.1 4-7/8” x 3/16” x 7/16″
G1258 ABN FG 125 x 8 x 11.1 4-7/8” x 5/16” x 7/16″
G1453 ABN FG 145 x 3 x 22.2 5-11/16” x 1/8” x 7/8″
G1454 ABN FG 145 x 4 x 22.2 5-11/16” x 5/32” x 7/8″
G1455 ABN FG 145 x 5 x 22.2 5-11/16” x 3/16” x 7/8″
G1458 ABN FG 145 x 8 x 22.2 5-11/16” x 5/16” x 7/8″
G2003 ABN FG 200 x 3 x 25.4 8” x 1/8” x 1″
G2004 ABN FG 200 x 4 x 25.4 8” x 5/32” x 1″
G2005 ABN FG 200 x 5 x 25.4 8” x 3/16” x 1″
G2008 ABN FG 200 x 8 x 25.4 8” x 5/16” x 1″


Wheel Sizes to chain sizes (Thickness)

Grinding Wheel Size Chain Size Notes
3mm / 1/8″ 1/4″, 3/8″, LP 1/4″ chain also called pico or piccolo. LP – Low Profile
4mm / 5/32″ 3/8″, .404 This is best for customers sharpening both sizes of chain
5mm / 3/16″ 0.404 This is best suited to 0.404 chain
8mm / 5/16″ 3/4″ This is best suited to 3/4″ chain. Also called Harvester chain


Wheel Sizes to Machines

Our wheels fit these machines
125mm / 4/78″ DinaSaw Machines
145mm / 5-11/16″ Tecomec, Oregon, Stihl USG (* Requires a Bush to 12mm centre)


Key Features & Benefits

  • Premium surface finish – finer grit delivers smoother, cleaner edges
  • Sharper cutting performance – reduces burrs and imperfections
  • Extended blade life – cleaner grinds preserve tooth strength
  • Consistent accuracy – every tooth set to a uniform finish
  • Professional upgrade – higher precision than standard ABN wheels
  • Compatible – suits Dinasaw sharpeners and most standard grinding machines

Technical Specifications

  • Type: Fine Grit ABN (Abrasive Boron Nitride) grinding wheel
  • Finish: Premium-grade fine grit for sharper, smoother results
  • Sizes Available: Range of diameters and profiles for chain and bandsaw sharpening
  • Application: Ideal for finishing passes or premium edge requirements
  • Origin: Built to Dinasaw’s professional standards
