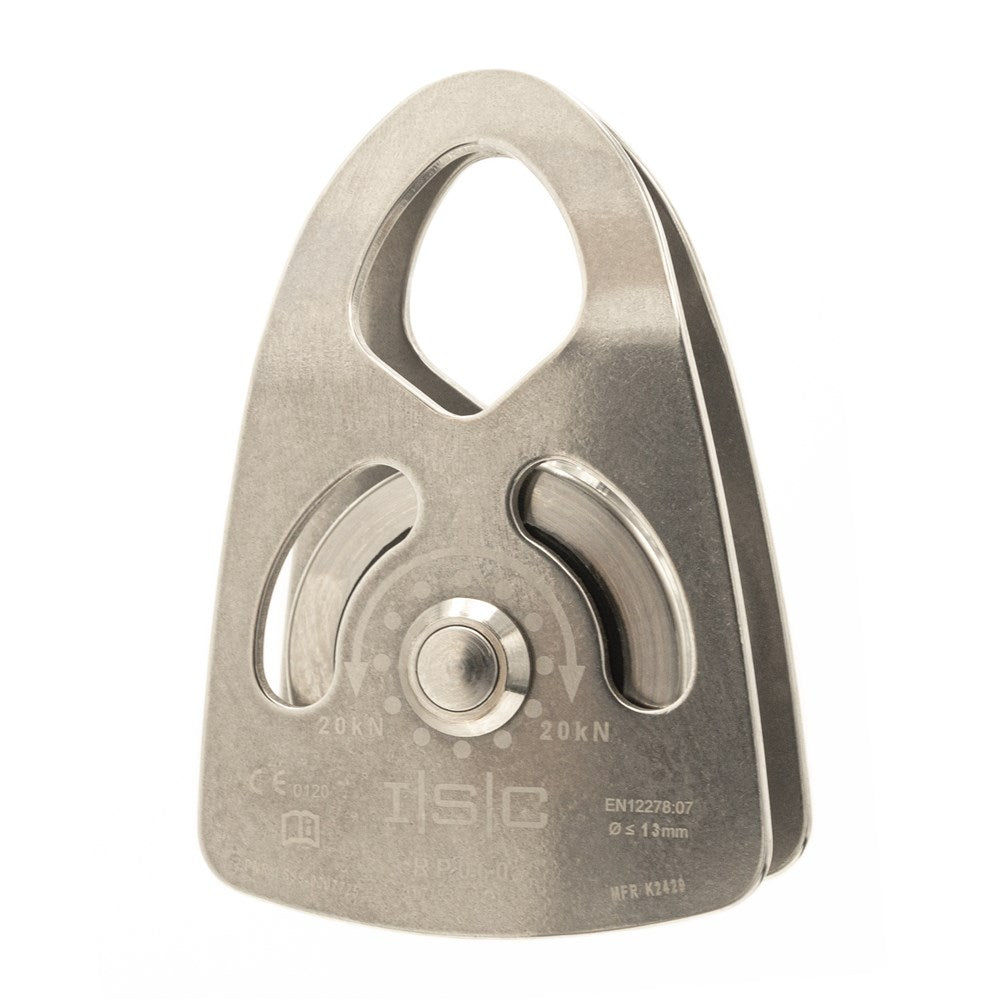

ISC Heavy-Duty Prussik Pulley (Aluminium / Stainless Steel)
The ISC Heavy-Duty Prussik Pulley range is engineered for demanding rope access, rescue, arborist, and industrial applications. Manufactured with tamper-proof rivets and independently accredited in the UK by a third-party test house, these pulleys comply with CE EN 12278 (2007) and NFPA (1983) requirements, delivering exceptional strength, durability, and reliability.
Available with either Aluminium or Stainless Steel sheaves, the range can be configured with Bushings or Roller Bearings to suit different working conditions. Bushings are recommended for high-load, low-speed applications, while roller bearings provide smoother performance in low-load, high-speed operations.
Models are available for ropes or steel cables up to 13 mm (1/2") or 16 mm (5/8"), with minimum breaking strengths ranging from 40 kN to 70 kN. All pulleys are individually serial numbered for complete product traceability.
Fixed Wheel Shear Reduction versions are available on request (additional charges apply).
Technical Information
| Specification | Small Aluminium/Stainless Steel | Medium Aluminium/Stainless Steel | Large Aluminium/Stainless Steel | Extra Large Aluminium/Stainless Steel |
|---|---|---|---|---|
| Compatible Rope / Cable Diameter | Up to 13 mm (1/2") | Up to 13 mm (1/2") | Up to 16 mm (5/8") | Up to 19 mm (3/4") |
| Minimum Breaking Strength (MBS) | 40 kN (8,992 lbf) | 50 kN (11,240 lbf) | 70 kN (15,736 lbf) | 70 kN (15,736 lbf) |
| Wheel Material | Aluminium/Stainless Steel | Aluminium/Stainless Steel | Aluminium/Stainless Steel | Aluminium/Stainless Steel |
| Finish | Anodised/Polished | Anodised/Polished | Anodised/Polished | Anodised/Polished |
| Colour | Red or Black/Natural Stainless Steel | Red or Black/Natural Stainless Steel | Red or Black/Natural Stainless Steel | Red or Black/Natural Stainless Steel |
| Weight | 214 g (8 oz)/398 g (14 oz) | 280 g (9.9 oz)/584 g (20.6 oz) | 440 g (15.5 oz)/896 g (31.6 oz) | 440 g (15.5 oz)/899 g (31.7 oz) |
| Bushings / Roller Bearings | Available | Available | Available | Available |
| Fixed Wheel Shear Reduction | Available on Request | Available on Request | Available on Request | Available on Request |
| Individual Serial Number | ✓ | ✓ | ✓ | ✓ |
Key Features
- Heavy-duty pulley for professional rope access, rescue, arborist and industrial applications.
- Tamper-proof rivet construction.
- Available with Aluminium or Stainless Steel sheaves.
- Compatible with ropes or steel cables up to 13 mm (1/2") or ropes up to 16 mm (5/8"), depending on the model.
- Choice of Bushings or Roller Bearings.
- Bushings are recommended for high-load, low-speed applications.
- Roller Bearings are recommended for low-load, high-speed applications.
- Available with 40 kN, 50 kN, or 70 kN minimum breaking strength depending on the selected model.
- Fixed Wheel Shear Reduction versions available upon request (additional charges apply).
- Individually serial numbered for complete traceability.
Approved Standards
- CE EN 12278
- NFPA (1983) compliant design*
- Independently accredited in the UK by a third-party test house.
For Shopify, this is a much cleaner approach. You can create one product with variants such as:
- Wheel Material: Aluminium / Stainless Steel
- Maximum Rope Diameter: 13 mm / 16 mm
- Minimum Breaking Strength: 40 kN / 50 kN / 70 kN
- Bearing Type: Bushing / Roller Bearing
